Full Flow Electro & Manual Dispensers


Full Flow Electro Dispensers

Full Flow Electro Dispensers dispense liquid from a reservoir, by gravity, through an electro shutoff valve. Designed to serve as a central reservoir of an oiling system, additional sight feed valves are needed for the regulation of liquid flow.

Flow is controlled by a normally closed solenoid valve. The compact solenoid is usually wired across the line of the drive motor providing automatic shutoff. The solenoid valve can be operated by a separate switch or timer for intermittent operation.

Durable, shatterproof acrylic reservoirs are for temperatures below 160° F. Crystal clear pyrex or polycarbonate reservoirs are available for temperatures below 225° F.

A spring closing cap is located on the top of all reservoirs. Remote mounts are also available on all models.

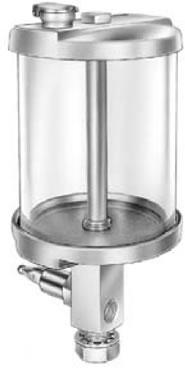

Full Flow Manual Dispensers

Full Flow Manual Dispensers deliver a gravity feed metered supply of liquid from a reservoir through an adjustable lockable needle valve which will not affect the metered settings.

These units are simple and efficient. A toggle shut off is provided which starts and stops the liquid flow The drop feeding of the liquid can be observed through a lower sight chamber.

Durable shatterproof polycarbonate reservoirs are for temperatures below 260 degree F, Acrylic and Pyrex reservoirs are available for temperatures below 160 degrees F.

A spring closing cap is located on the top of all reservoirs. Remote mounts are also available on all models.
