Multiple Feed Lubricators

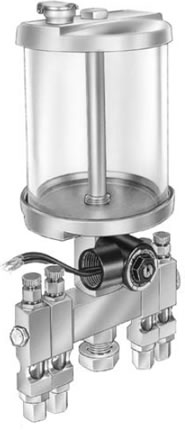

Multiple Feed Electro Lubricators

Multiple Feed Electro Lubricators

Multiple Feed Electro Lubricators have been revolutionized, using a new style manifold with multiple metering valve system. This unique feature allows the addition of metered valves in the field, by stacking the metered valves together.

Liquid is released by gravity from a reservoir by a normally closed solenoid valve which is located below the reservoir to a new modular stacked multiple feed valves Each valve is a separate and complete unit that interlocks and seals with the preceding valve.

Up to 24 sight feed valves can be individually adjusted and the setting retained by means of a friction lock. Drop feeding of the liquid to widely separated points can be controlled and observed from one central location.

Durable shatterproof polycarbonate reservoirs are for temperatures below 260 degree F, Acrylic and Pyrex reservoirs are available for temperatures below 160 degrees F.

A spring closing cap is located on the top of all reservoirs. Remote mounts are also available on all models.

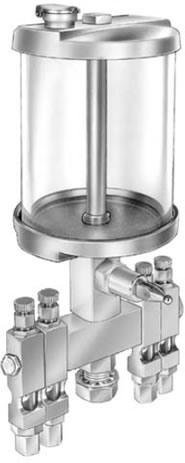

Multiple feed manual lubricators

Multiple Feed Manual Lubricators

Multiple feed manual lubricators have been revolutionized, using a new style manifold with multiple metering valve system. This unique feature allows the addition of metered valves in the field, by stacking the metered valves together.

Liquid is released by gravity from a reservoir by a toggle shutoff valve which is located below the reservoir to a new modular stacked multiple feed valves Each valve is a separate and complete unit that interlocks and seals with the preceding valve.

Up to 24 sight feed valves can be individually adjusted and the setting retained by means of a friction lock. Drop feeding of the liquid to widely separated points can be controlled and observed from one central location. Durable shatterproof polycarbonate reservoirs are for temperatures below 260 degree F, Acrylic and Pyrex reservoirs are available for temperatures below 160 degrees F.

A spring closing cap is located on the top of all reservoirs. Remote mounts are also available on all models.




Call La Belle Lube at 1 888 625 4409 or e-mail your request to websales@labellelube.com

Need Industrial Level Gage Lubrication Equipment ?
