Single Feed Lubricators


Single Feed Electro & Manual Lubricators

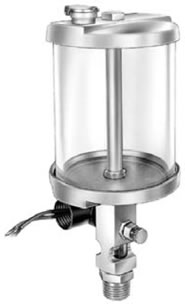

Single Feed Electro Lubricators

Single Drop Feed Electro deliver a gravity feed metered supply of liquid from a reservoir through a normally closed solenoid valve to an adjustable needle valve, with a friction lock to retain the setting.

These units are simple and efficient. The drop feeding of the liquid can be observed through a lower sight chamber. Flow is controlled by wiring the normally closed solenoid valve across the line of the drive motor, providing automatic operaion. The solenoid can be operated by a separate switch or timer for intermittent use.

Durable shatterproof polycarbonate reservoirs are for temperatures below 260 degree F, Acrylic and Pyrex reservoirs are available for temperatures below 160 degrees F.

A spring closing cap is located on the top of all reservoirs. Remote mounts are also available on all models.

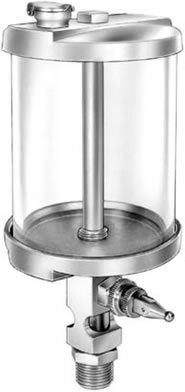

Single Drop Feed Manual Lubricators

Single Feed Manual Lubricators

Single Drop Feed Manual Lubricators deliver a gravity feed metered supply of liquid from a reservoir through an adjustable lockable needle valve which will not affect the metered settings.

These units are simple and efficient. A toggle shut off is provided which starts and stops the liquid flow The drop feeding of the liquid can be observed through a lower sight chamber.

Durable shatterproof polycarbonate reservoirs are for temperatures below 260 degree F, Acrylic and Pyrex reservoirs are available for temperatures below 160 degrees F.

A spring closing cap is located on the top of all reservoirs. Remote mounts are also available on all models.






Call La Belle Lube at 1 888 625 4409 or e-mail your request to websales@labellelube.com
